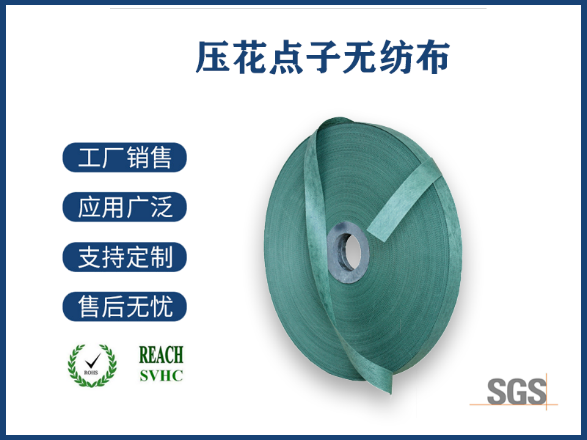

[产品说明]: 压花点子无纺布是以涤纶纤维为主体,丙纶纤维为粘结挤,经热轧法科学加工而成。
Product Description: Dot embossed non-woven tape is mainly made of polyester fiber, polypropylene fiber as adhesive agent, and is formed by thermal bonding scientific processing.
[应用方式]: 适合用于全塑电力电缆、控制电缆、通信电缆、光纤电缆、橡套电缆的绕包、芯外扎紧、纵包及垫层使用等。
Application: Suitable for wrapping, tightening ex-core, pitch and cushion in plastic power cables, control cable
s, communication cables, optical cables, rubber-sheathed cable.
一、主要技术指标:
Main specification:
产品规格Specification | 伸长率Elongation(%) | 拉伸强度Tensile strength(N/40mm) | 基重Basis weight(g/m²) | 吸水速度Water absorption speed(mm/min) |
130±5μm | 15↓ | 120↑ | 70±5 | 0.1↓ |
160±5μm | 15↓ | 150↑ | 80±5 | 0.1↓ |
200±5μm | 20↓ | 200↑ | 95±5 | 0.1↓ |
250±5μm | 20↓ | 250↑ | 105±5 | 0.1↓ |
除以上规格外,其它可按客户特殊要求单独设计。In addition to the above specifications, other special requirements can design according to customers |
二、颜色:白色和草绿色。
Color: White and grass green
三、电气特性:压花点子无纺布比重轻,拉伸力强,由于压花后增加了摩擦,绕包时不易松脱,适用于绕包速度较快的成缆机用。
Electrical characteristics: light weight, good for tensile strength, due to the embossed increases the friction, it is not easy to loose when wrapped, apply to wrapping with high speed machine.
四、分切及包装:分切最小宽度为5mm,内孔大小为52mm或76mm;收卷最大外径为800mm,纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
