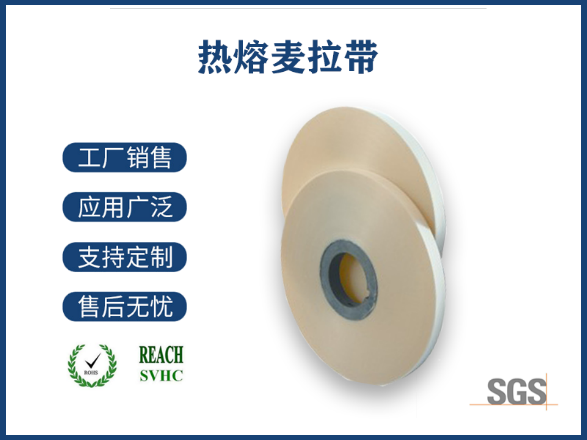

[产品说明]: 热熔麦拉带采用热熔胶为MQ-40的高分子聚合物与PET聚酯带均匀涂布而成，无毒无公害，符合最新版欧盟RoHS环保规章。保证能在较低预热温度下，具有良好的热熔粘结效果，且保持长期稳定。
Product Description: Heat sealed polyester tape using hot-melt adhesive for MQ-40 high polymer and PET polyester coating, non-toxic and harmless, accord with the latest version of the EU RoHS environmental regulations. It has good effect of hot melt adhesive when the low temperature and can keep the stability for a long time.
[应用方式]: 主要应用于高频信号线、射频线、同轴电缆、电脑线、家用通信电缆等。利用线材外披覆压出的热能产生粘着，加固牢度好，密合优异，后段加工简单。应用于多导体控制线材内部的绝缘用途，如信号线，同轴电缆，有线电视线材，USB3.1数据线，Series ATA排线或是局域网络电缆。
Application: Mainly used in high-frequency signal lines, RF cable, coaxial cable, computer lines, and communication cables and so on. Use thermal energy with out coating wire, good reinforce, excellent compactness and simple process. Apply to insulation function of multi-conductive control wire inner, such as signal wire, coaxial cable, TV wire, and USB3.1 data lines, series ATA wire or LAN cables.
一、主要技术指标：
Main specification:
| 产品规格Specification | 组成Composition | 伸长率Elongation（%） | 抗张强度Tensile strength（kgf/m²） | 基重Basis weight（g/m²） | |
| 麦拉厚PET | 热熔胶Hot melt adhesive | ||||
| 17μm | 12μm | 5μm | 35↑ | 0.18↑ | 18.25 |
| 20μm | 15μm | 5μm | 35↑ | 0.22↑ | 20.25 |
| 30μm | 25μm | 5μm | 35↑ | 0.37↑ | 33.75 |
| 43μm | 38μm | 5μm | 35↑ | 0.58↑ | 51.30 |
| 55μm | 50μm | 5μm | 35↑ | 0.75↑ | 79.65 |
| 80μm | 75μm | 5μm | 35↑ | 1.12↑ | 86.40 |
| 除以上规格外，其它可按客户特殊要求单独设计。In addition to the above specifications, other special requirements can design according to customers | |||||
热熔材质: MQ-40, Proprietary Formulated Co-polymer
Hot melt materials: MQ-40, Proprietary Formulated Co-polymer涂布厚度: 精密涂布可自3μ起至最大25μ（3克至25克/平方米） Coating thickness: Precise coating 3μ-25μ (3g-25g/m2)
热反应温度: 摄氏110至135度
Temperature thermal reaction: 110°C-135°C
热封强度: 一般约为250至400克/20mm，特殊结构与强化配方可达1500克/20mm以上
Heat-Sealing strength: normal=250~400g/20mm, strengthened>1500g/20mm
二、颜色：透明。
Color: Transparent
三、电气特性：耐温180℃，具有较高的机械强度，卓越的绝缘屏蔽性能，耐高温、耐低温，是理想的绕包材料，主要作为绝缘及隔离，同时可以增加特性阻抗。
Electrical characteristics: Temperature resistance of 180℃, with high mechanical strength, excellent insulation and shielding performance, high temperature resistance, low temperature resistance. It is an ideal wrapping material, mainly used as insulation and isolation, as well as increased characteristic impedance.
四、分切及包装：分切最小宽度为2mm，采用轴装形式；常规分切宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 2mm, adopt shaft packing form; conventional slitting width is 5mm, bore size is 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
