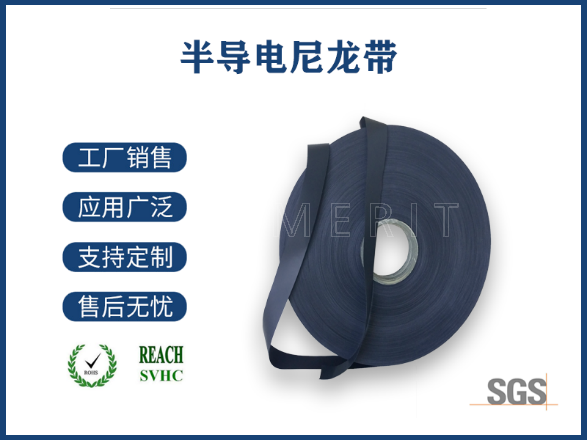

[产品说明]: 由尼龙带经过半导电胶浸渍烘干成型，纤维经过充分梳理，纵向强度高，电阻小。
Product Description: Made of nylon tape, via semi-conductive adhesive impregnated dry and forming, fiber after fully carding, high longitudinal strength, low resistance.
[应用方式]: 适合用于高压交联聚乙烯电缆、高压或超高压电力电缆、矿用等电缆的导体绕包和芯线屏蔽、绑扎。
Application: Suitable for wrapping and core wire for shielding and banding, such as high voltage XLPE polyethylene cables, high or extra high voltage power cable, mining cable.
一、主要技术指标：
Main specification:
| 产品规格Specification（μm） | 基重Basis weight（g/m²） | 拉伸强度Tensile strength（N/cm） | 伸长率Elongation（%） | 表面电阻Surface resistance(Ω) | 体积电阻Volume resistance(Ω.cm) | 瞬间稳定性Short-term stability（℃） | 长期稳定性Long-term stability（℃） |
| 100±20 | 90±10 | 120↑ | 25↑ | 1000↓ | 1*105↓ | 210 | 145 |
| 120±20 | 100±10 | 140↑ | 40↑ | 1000↓ | 1*105↓ | 210 | 145 |
| 140±20 | 110±10 | 150↑ | 40↑ | 1000↓ | 1*105↓ | 210 | 145 |
| 除以上规格外，其它可按客户特殊要求单独设计。In addition to the above specifications, other special requirements can design according to customers | |||||||
二、颜色：黑色。
Color: Black
三、电气特性：电阻小，具有半导电特性，能有效弱化电场强度，机械强度高，易于各种电力电缆的导体或纤芯的绑扎，产品耐热性好，瞬间耐温高，电缆可在瞬间高温时保持性能稳定。
Electrical characteristics: Little resistance, with semi-conducting characteristics, can weaken the electric field strength effectively. Not deformed easily when in external force, used for wrapping of all kinds of power cables. Good heat resistant, high temperature resistance in short-term, cable can keep stable at high temperature.
四、分切及包装：分切最小宽度为5mm，内孔大小为52mm或76mm；收卷最大外径为800mm，纸箱包装。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
