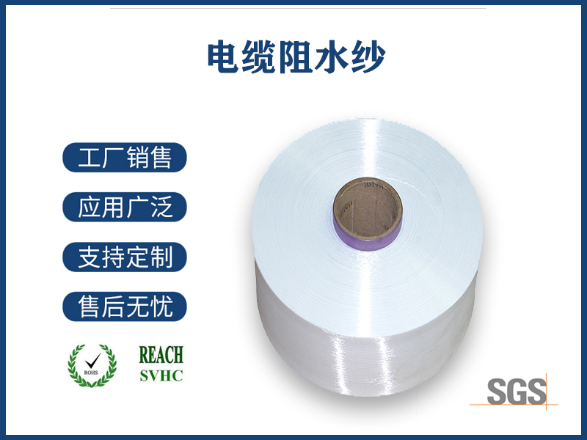

[产品说明]:阻水纱是由工业涤纶长丝、高分子膨胀吸水树酯和粘合剂组成。
Product Description: The water blocking yarn consists of industrial polyester filament, macromolecule swelling water absorbing tree ester and adhesive.
[应用方式]: 主要用于光缆、通信电缆、扇形线芯电力电缆，海底电缆等各部件之间的阻水填充作用。
Application: It is mainly used for water blocking and filling between optical fiber cable, communication cable, fan-shaped wire core, power cable, submarine cable and other parts.
一、主要技术指标：
Main specification:
| 产品规格Specification | 基重Basis weight（m/kg） | 断裂强度Breaking Strength（N） | 膨胀速率Swelling rate(ml/g/1st min) | 长期耐温膨胀率Long-term thermal expansion rate | 瞬间耐温膨胀率Transient thermal expansion rate | 含水率Melting point | |
| 700D | 12857 | ≥50 | 15↓ | ≥60 | ≥65 | ≥65 | 9↓ |
| 1500D | 6000 | ≥50 | 15↓ | ≥60 | ≥65 | ≥65 | 9↓ |
| 2000D | 4500 | ≥60 | 15↓ | ≥60 | ≥65 | ≥65 | 9↓ |
| 2500D | 3600 | ≥70 | 15↓ | ≥60 | ≥65 | ≥65 | 9↓ |
| 3000D | 3000 | ≥100 | 15↓ | ≥60 | ≥65 | ≥65 | 9↓ |
| 4500D | 2000 | ≥150 | 15↓ | ≥55 | ≥65 | ≥65 | 9↓ |
| 6000D | 1500 | ≥200 | 15↓ | ≥50 | ≥55 | ≥55 | 9↓ |
| 9000D | 1000 | ≥250 | 15↓ | ≥45 | ≥55 | ≥55 | 9↓ |
| 18000D | 500 | ≥300 | 15↓ | ≥40 | ≥50 | ≥50 | 9↓ |
| 除以上规格外，其它可按客户特殊要求单独设计。In addition to the above specifications, other special requirements can design according to customers | |||||||
二、颜色：白色
Color: White
三、电气特性：阻水绳具有良好的吸水性能，抗拉力强，无腐蚀性，并且不含酸碱。
Electrical characteristics: Water blocking yarn has good water absorption performance, strong tensile resistance, no corrosion, and no acid and alkali.
四、包装方式：纸箱包装，每箱24KG。
Packaging: Carton package, 24KG per package.
