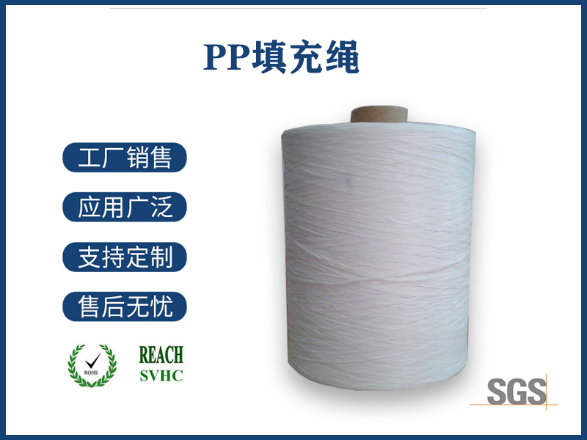

[产品说明]: 又叫充麻,以聚丙烯为基料,经过专用机器开网加工制成高强力网状填充材料,可根据客户需求加捻,或者加入环保阻燃剂制成阻燃型填充绳。
Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting according to customer's requirement, or add environmentally friendly flame retardant agent.
[应用方式]: 普遍使用于复合型通信电缆、钢丝绞绳,电力电缆及特种阻燃耐炎电缆的轻质结构填充。
Application: Commonly used for filling in complex communication cables, steel wire rope, power cables and special fire-retardant cable.
一、主要技术指标:
Main specification:
产品规格Specification | 每公斤长度Length/KG(M/KG) | 伸长率Elongation(%) | 拉断力Pulling strength(N) | 热收缩率Heat shrinkage(%) | 捻后直径Twisted diameter(mm) |
2000D | 4500 | 15↓ | 30↑ | 2.5↓ | 0.4 |
4000D | 2400 | 15↓ | 50↑ | 2.5↓ | 0.5 |
5000D | 1800 | 15↓ | 55↑ | 2.5↓ | 0.6 |
8000D | 1125 | 15↓ | 80↑ | 2.5↓ | 1.0 |
10000D | 935 | 15↓ | 90↑ | 2.5↓ | 1.2 |
12000D | 750 | 15↓ | 100↑ | 2.5↓ | 1.5 |
15000D | 600 | 15↓ | 150↑ | 2.5↓ | 1.8 |
20000D | 450 | 15↓ | 200↑ | 2.5↓ | 2.2 |
30000D | 300 | 15↓ | 300↑ | 2.5↓ | 2.6 |
注:除以上规格外,可以根据客户特殊要求订做。In addition to the above specifications, other special requirements can design according to customers |
二、颜色:常规颜色为白色和透明两种颜色,阻燃充麻为淡蓝色。
Color: Common color is white and transparent, Flame retardant filled yarn is light blue.
三、特点:柔软性极佳,重量轻、非吸湿性材料、强度不受水份影响、抗拉强度高、抗酸碱及抗霉性佳、高频绝缘性能好、耐电压、无毒环保。
Electrical characteristics: Excellent flexibility, light weight, non-absorbent material, the intensity is not affected by moisture, high tensile strength, good anti-acid and alkaline, high insulation properties and good resistance to voltage, drug-free and environmental.
四、包装方式:编织袋或纸箱包装。
Packaging: Woven bag or carton packaging
