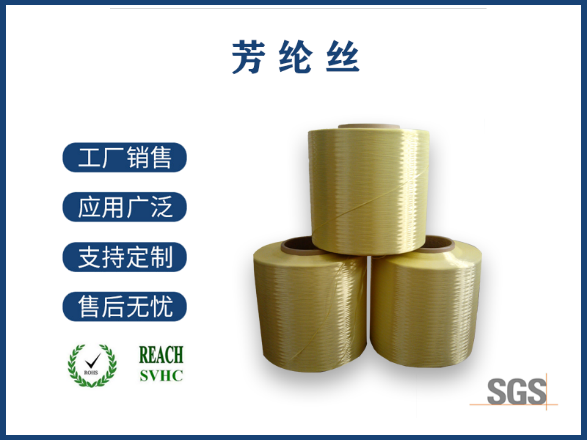

[产品说明]: 又叫防弹丝或凯芙拉Kevlar，是一种新型高科技合成纤维，具有超高强度、高模量和耐高温、耐酸耐碱、重量轻等优良性能,其强度是钢丝的5～6倍，模量为钢丝或玻璃纤维的2～3倍，韧性是钢丝的2倍，而重量仅为钢丝的1/5左右，在560度的温度下，不分解，不融化。它具有良好的绝缘性和抗老化性能，具有很长的生命周期。芳纶的发现，被认为是材料界一个非常重要的历史进程。
Product Description: Also called bulletproof yarn or Kevlar, is a new high-tech synthetic, has ultra-high strength, high modulus volume, resistance high temperature, acid and alkali resistant, and light weight, such as 5 ~ 6 times that of steel wire on its strength, modulus of steel wire or fiber glass 2 ~ 3 times, toughness is 2 times of wire, and weight is only about 1/5 of the steel wire, under the temperature of 560 ° C, Won't to resolve and melt. It has good insulation properties and anti-aging properties, with a long life cycle. Aramid finds, is considered to be a very important historical material processes.
[应用方式]: 用于高性能电线电缆、光纤光缆、海缆等
Application: Used in high-performance wire and cable, optical cable and submarine cables etc.
一、主要技术指标：
Main specification:
| 产品规格Specification | 断裂强度Breaking strengthcN/dtex | 密度Density（g/cm3） | 热收缩率Heat shrinkage（%） | 伸长率Elongation（%） |
| 150D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 250D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 300D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 500D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 1000D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 1500D | 20.92↑ | 1.44-1.67 | 2.0↓ | 3.55 |
| 除以上规格外，其它可按客户特殊要求单独设计。In addition to the above specifications, other special requirements can design according to customers | ||||
二、颜色：黄色。
Color: Yellow
三、特性：抗拉性能是所有纤维中最好的，耐高温，软化点367-370℃，长期使用温度为200℃以上，防火性能好，在火焰中不熔融，离开火源有自熄性，抗切割，热稳定性好，在高温下不熔，玻璃化转变温度约345°C； 拉伸性能好，弯曲性能一般，打结易形成毛刺： 耐普通有机溶剂及盐类溶液，耐强酸、强碱性差；对紫外线敏感，长时间暴露在阳光下，强度衰减约40%；
Characteristics: Anti-pulled properties is the best in all fiber, resistance high temperature, softening points is 367-370 ℃, long-term using temperature for 200 ℃ above, fireproof properties is good, not melting in the flame, has self-extinguishing, anti-cutting, heat stability when left fire, not melt in high temperature, glass of change temperature about 345 ° c; good stretch properties, general bending properties, easy formed Burr if knot: resistance general organic solvent and the salts solution, resistance strong acid and alkaline is poor; on UV sensitive when exposed in sunshine for long time, strength attenuation about 40%；
四、包装方式：编织袋或纸箱包装。每箱24KG.
Packaging: Woven bag or carton packaging, 24kg per bag.
