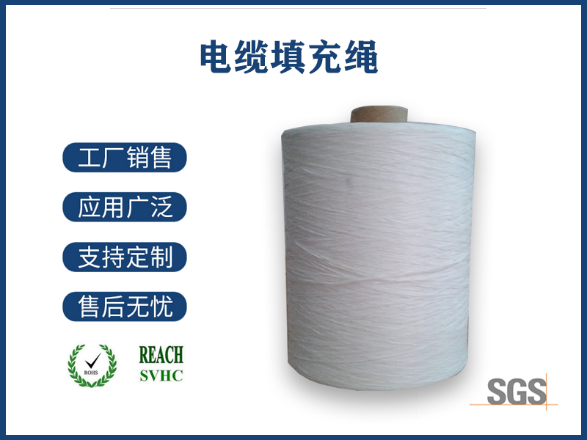

电缆填充绳

[产品说明]: 又叫充麻,以聚丙烯为基料经过专用机器开网加工制成高强力网状填充材料,可根据客户需求加捻,或者加入环保阻燃剂制成阻燃型填充绳。

Product Description: Also known as hemp-filled yarn, base on polypropylene, made from high tenacity net filling materials through special machines, twisting according to customer's requirement, or add environmentally friendly flame retardant agent.


[应用方式]: 普遍使用于复合型通信电缆、钢丝绞绳,电力电缆及特种耐炎电缆的轻质结构填充。

Application: Commonly used for filling in complex communication cables, steel wire rope, power cables and special fire-retardant cable.

一、主要技术指标:

Main specification:

产品规格Specification公斤长度Length/KG(M/KG)伸长率Elongation(%)拉断力Pulling strengthN热收缩率Heat shrinkage%捻后直径Twisted diametermm
2000D450015302.50.4
4000D240015502.50.5
5000D180015552.50.6
8000D112515802.51.0
10000D9351590↑2.51.2
12000D750151002.51.5
15000D600151502.51.8
20000D45015200↑2.52.2
30000D30015300↑2.52.6
注:除以上规格外,可以根据客户特殊要求订做。In addition to the above specifications, other special requirements can design according to customers



二、颜色:常规颜色为白色和透明两种颜色,阻燃充麻为淡蓝色。

Color: Common color is white and transparent, Flame retardant filled yarn is light blue.


三、特点柔软性极佳,重量轻、非吸湿性材料、强度不受水份影响、抗拉强度高、抗酸碱及抗霉性佳、高频绝缘性能好、耐电压、无毒环保。

Electrical characteristics: Excellent flexibility, light weight, non-absorbent material, the intensity is not affected by moisture, high tensile strength, good anti-acid and alkaline, high insulation properties and good resistance to voltage, drug-free and environmental.


四、包装方式:编织袋或纸箱包装。

Packaging: Woven bag or carton packaging
